Technical Features

• High-Capacity Terminal Blocks: Equipped with an integrated branch terminal block supporting conductor cross-sections up to 10 mm² (with up to 16 mm² clamping capacity) for heavier power distribution lines.

• IP66 Weatherproof Ingress Protection: Engineered to be dust-tight and fully protected against powerful water jets, making it reliable in demanding industrial environments.

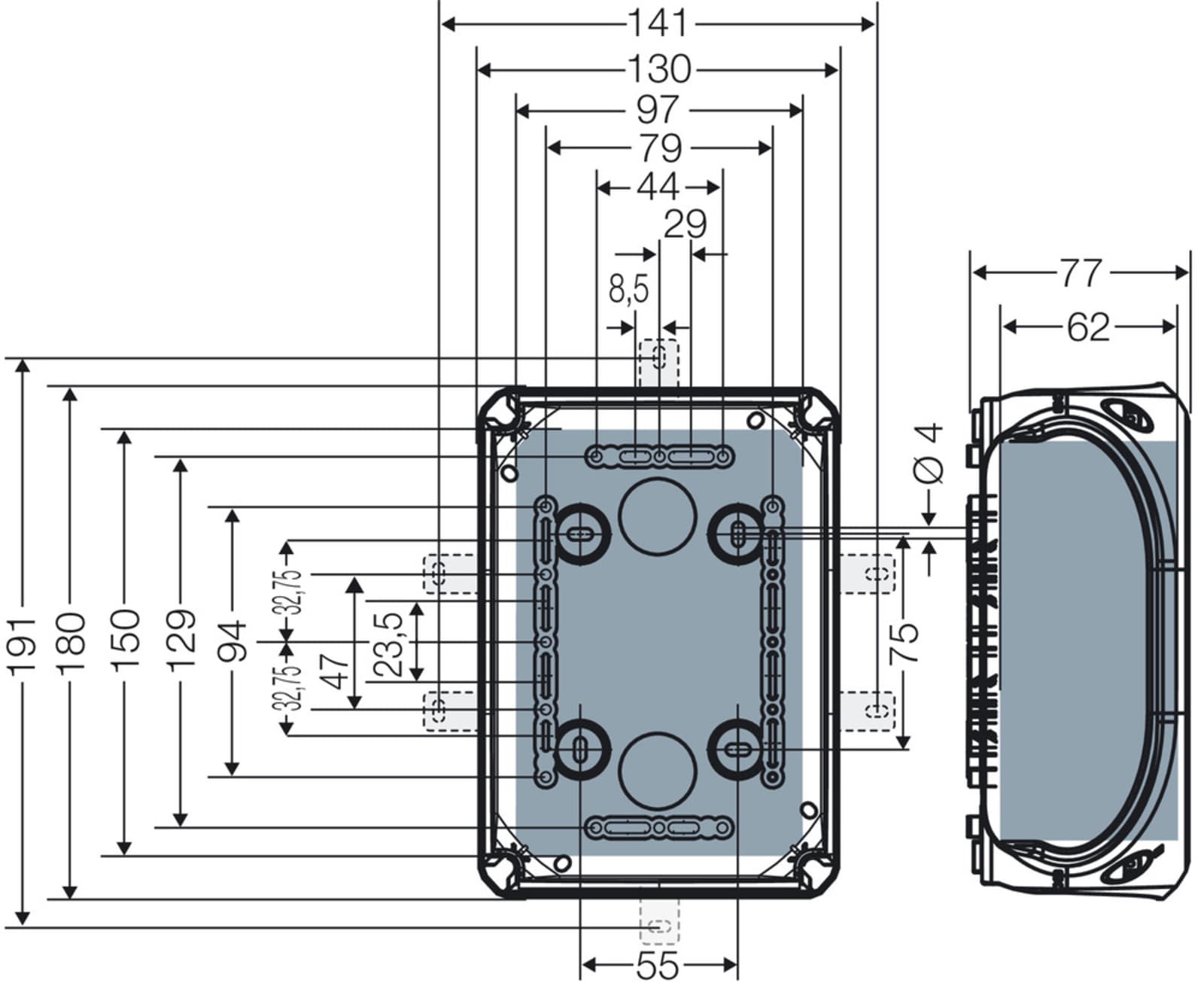

• Spacious Enclosure Design: Measures 130 x 180 x 77 mm, offering ample internal space for routing, bending, and terminating thicker cables without overcrowding.

• Flexible Cable Entry Options: Features built-in elastic membranes that allow quick push-through wiring or can be completely removed to accommodate standard threaded cable glands.

Applications

• Commercial & Industrial Main Distribution: Ideal for surface-mounted power splitting, sub-main circuit branching, and heavy-duty lighting distribution in commercial buildings.

• Protected Outdoor Installations: Safely deployed in covered exterior areas, loading bays, parking garages, and industrial utility corridors exposed to humidity and dust.

• Heavy Machinery Auxiliaries: Used in industrial facilities for housing high-capacity terminal splices and intermediary power feeds for automation equipment.

Buyer Guidance

• Verify Conductor Gauge: Confirm that your installation utilizes wire sizes up to 10 mm² to ensure a secure and compliant fit within the high-capacity internal terminals.

• Assess Environmental Exposure: Ensure the junction box is installed indoors or in a protected outdoor environment (such as underneath an eave or roof covering) to shield it from continuous direct weather exposure.

• Select Appropriate Entry Method: Decide whether to pierce the integrated elastic membranes for rapid installation or install proper external cable glands for heavy-duty strain relief.
